Radio Rehab – Now with sound
Over the last few years I have had a dream of converting an old broken radio into a bluetooth enabled system.
So far I have purchased:
- An old radio from an antique fair
- Two inexpensive stereo amplifies, First & Second
- One Bluetooth adapter
- 12v to 5v converter
- 12v Power supply adapter
I have now started to put all of these parts together. Right now it has just been cobbled together on the kitchen table. It will eventually need to be moved into the Old radio case.
Items that still need to be selected include a small set of speakers and possibly some switches.
To put it all together I had to do a little bit of soldering.

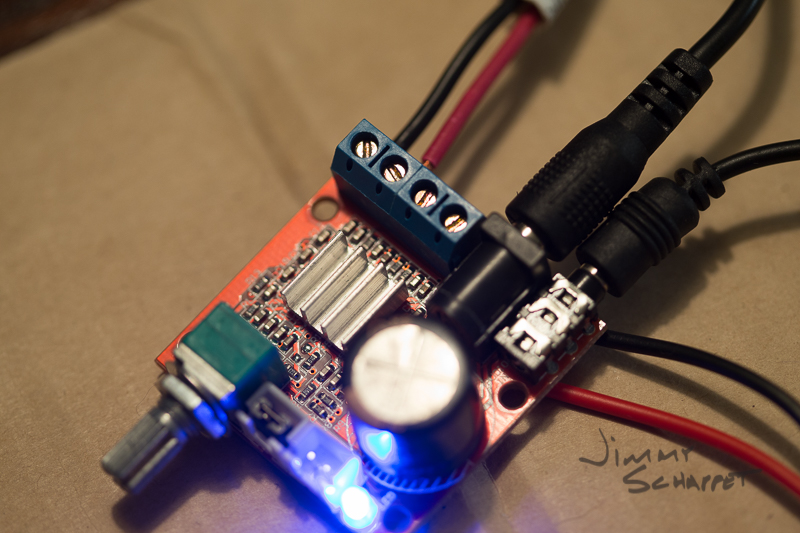

Amplifier

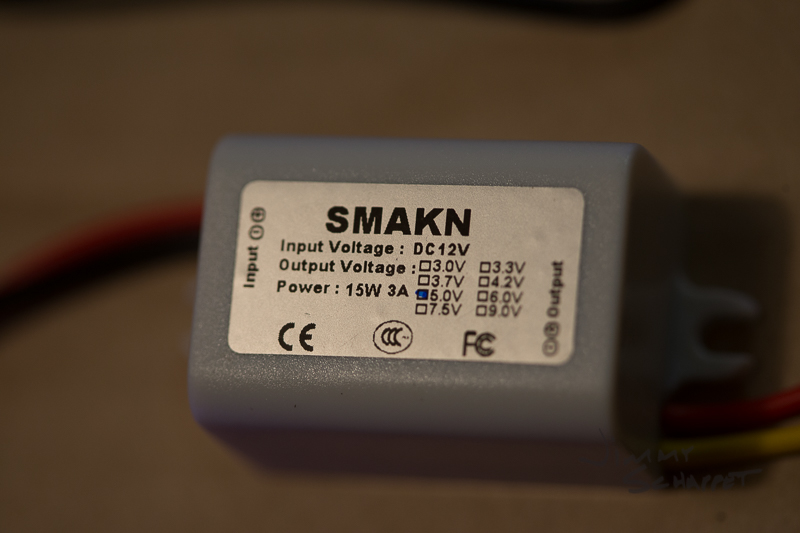

12v to 5v Converter

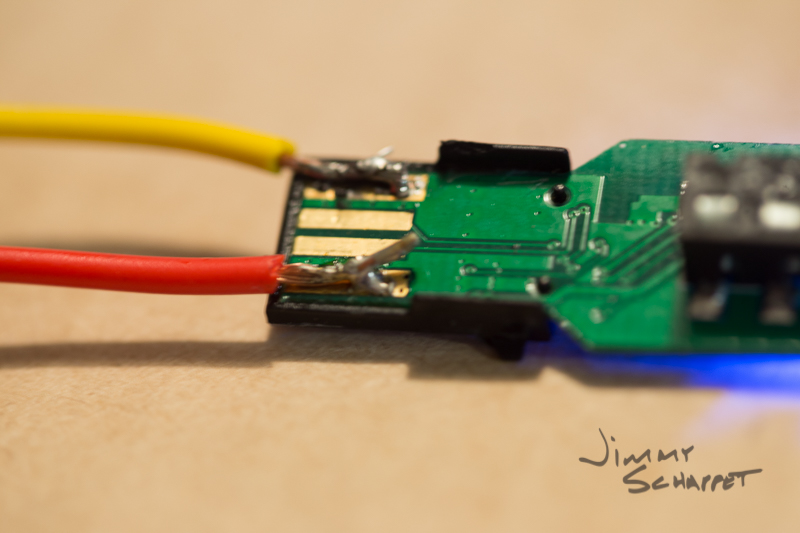

Power to Bluetooth adapter

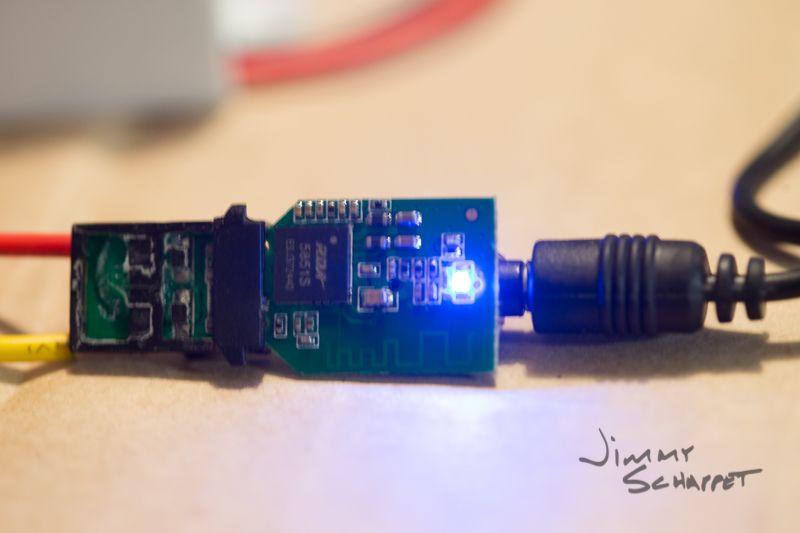

Powered on bluetooth adapter

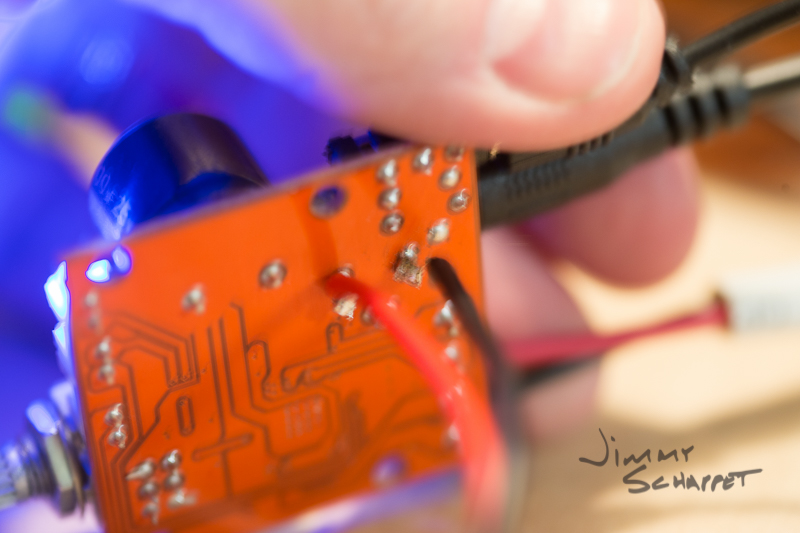

Connecting Power from Amplifier to the 12v input of the converter

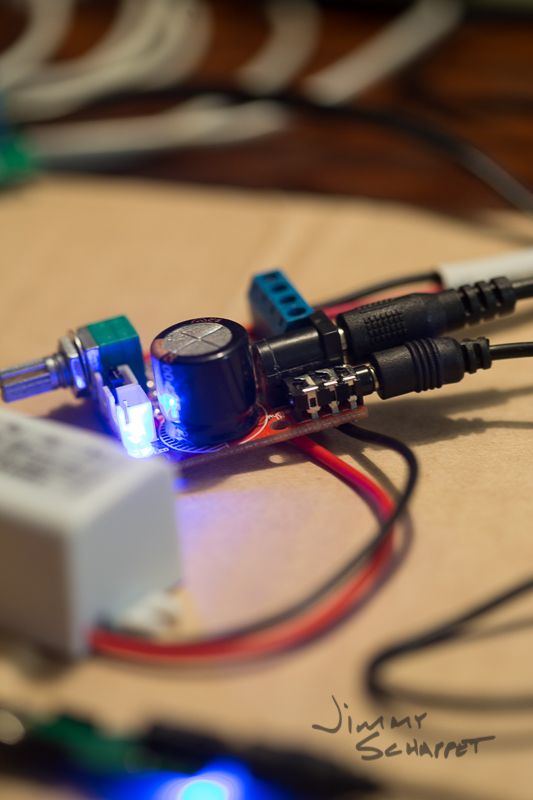

Everything put together
